Pipe coding
Facts

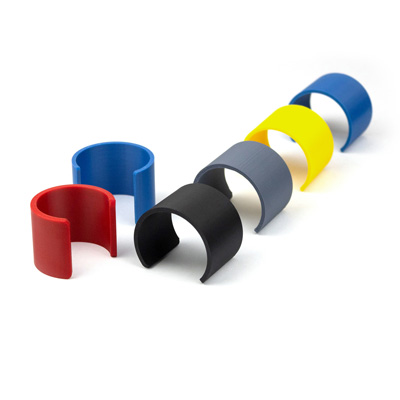

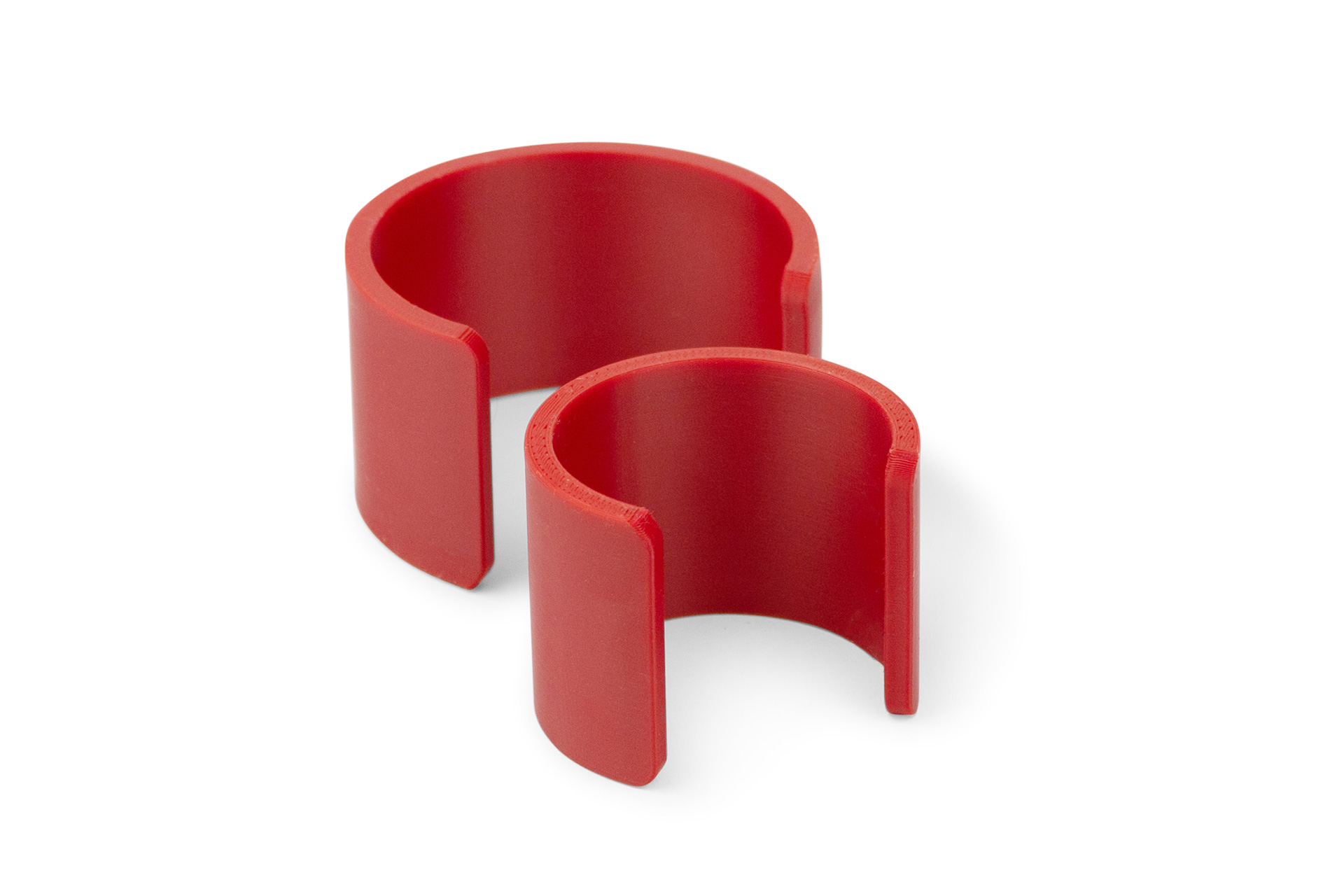

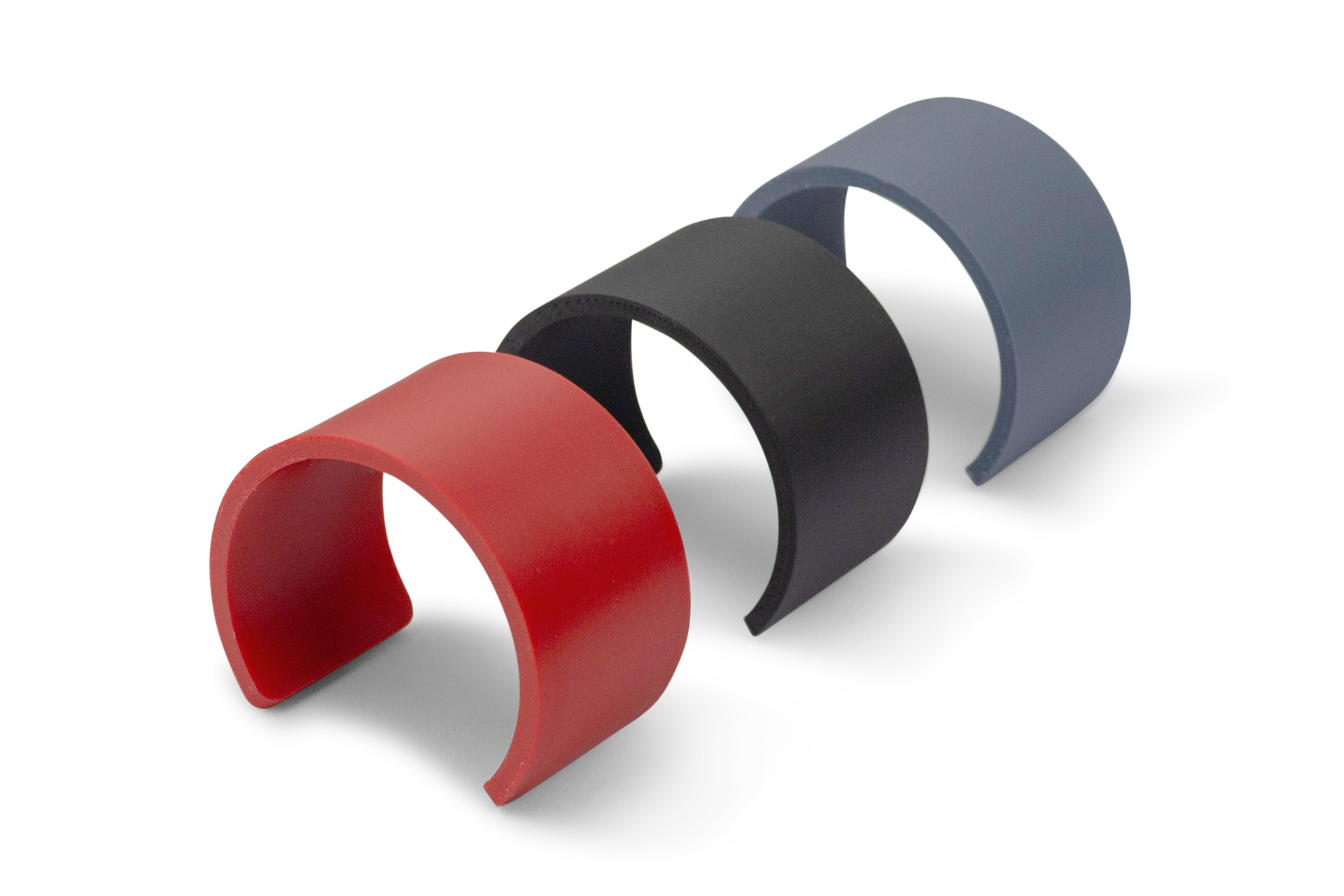

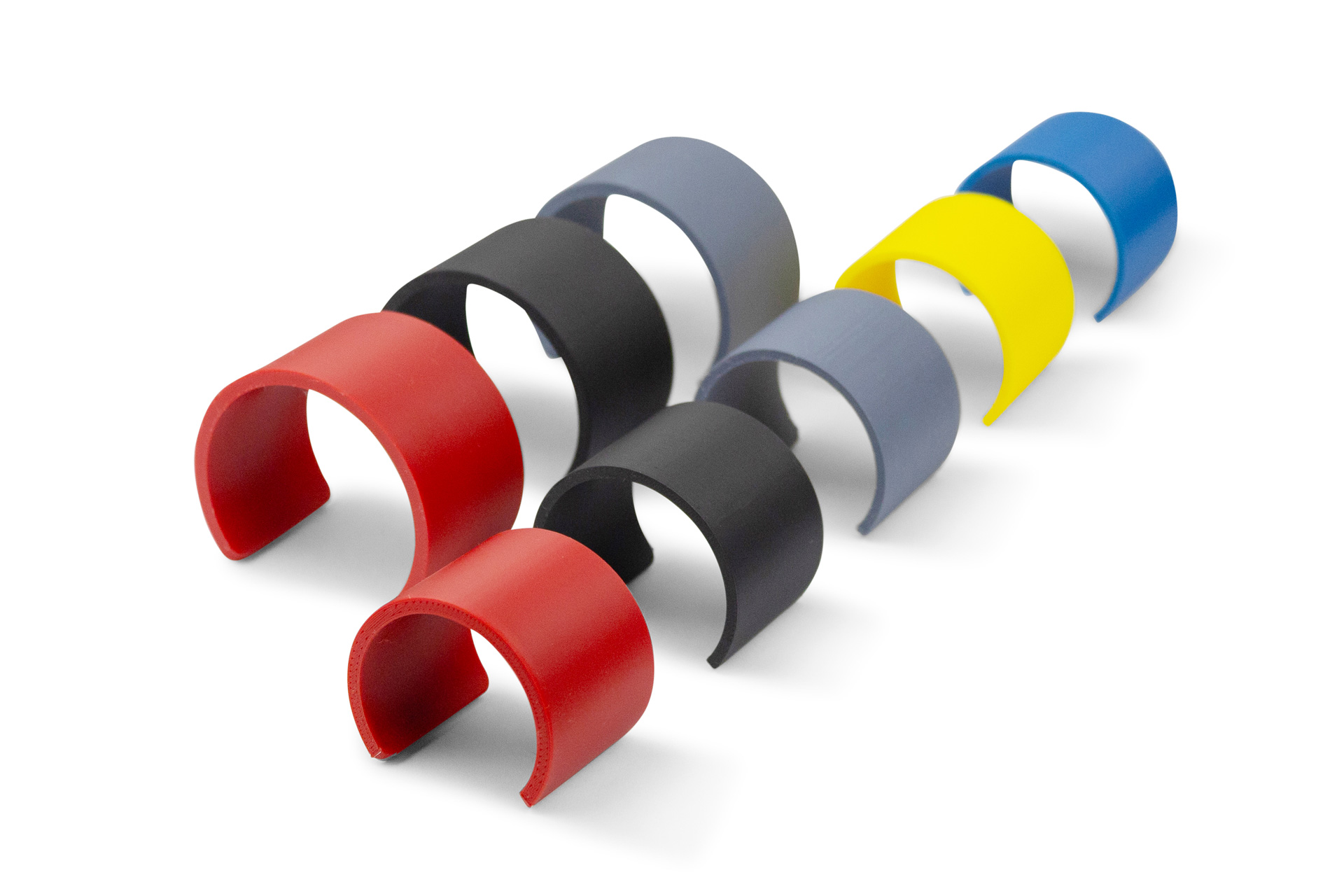

Plastic pipe clip
for diameter ø 38.0 mm - 60.3 mm
Other colors on request
Article no.
For pipe ø | mm
Color
R-MCODE-0380-BLAU
38
BLUE
R-MCODE-0380-BRAU
38
BROWN
R-MCODE-0380-GELB
38
YELLOW
R-MCODE-0380-GRAU
38
GRAY
R-MCODE-0380-GRUN
38
GREEN
R-MCODE-0380-LILA
38
LILA
R-MCODE-0380-ORAN
38
ORANGE
R-MCODE-0380-ROT
38
RED
Article no.
For pipe ø | mm
Color
R-MCODE-0400-BLAU
40
BLUE
R-MCODE-0400-BRAU
40
BROWN
R-MCODE-0400-GELB
40
YELLOW
R-MCODE-0400-GRAU
40
GRAY
R-MCODE-0400-GRUN
40
GREEN
R-MCODE-0400-LILA
40
LILA
R-MCODE-0400-ORAN
40
ORANGE
R-MCODE-0400-ROT
40
RED
Article no.
For pipe ø | mm
Color
R-MCODE-0450-BLAU
45
BLUE
R-MCODE-0450-BRAU
45
BROWN
R-MCODE-0450-GELB
45
YELLOW
R-MCODE-0450-GRAU
45
GRAY
R-MCODE-0450-GRUN
45
GREEN
R-MCODE-0450-LILA
45
LILA
R-MCODE-0450-ORAN
45
ORANGE
R-MCODE-0450-ROT
45
RED
Article no.
For pipe ø | mm
Color
R-MCODE-0500-BLAU
50
BLUE
R-MCODE-0500-BRAU
50
BROWN
R-MCODE-0500-GELB
50
YELLOW
R-MCODE-0500-GRAU
50
GRAY
R-MCODE-0500-GRUN
50
GREEN
R-MCODE-0500-LILA
50
LILA
R-MCODE-0500-ORAN
50
ORANGE
R-MCODE-0500-ROT
50
RED
Article no.
For pipe ø | mm
Color
R-MCODE-0540-BLAU
54
BLUE
R-MCODE-0540-BRAU
54
BROWN
R-MCODE-0540-GELB
54
YELLOW
R-MCODE-0540-GRAU
54
GRAY
R-MCODE-0540-GRUN
54
GREEN
R-MCODE-0540-LILA
54
LILA
R-MCODE-0540-ORAN
54
ORANGE
R-MCODE-0540-ROT
54
RED
Article no.
For pipe ø | mm
Color
R-MCODE-0600-BLAU
60
BLUE
R-MCODE-0600-BRAU
60
BROWN
R-MCODE-0600-GELB
60
YELLOW
R-MCODE-0600-GRAU
60
GRAY
R-MCODE-0600-GRUN
60
GREEN
R-MCODE-0600-LILA
60
LILA
R-MCODE-0600-ORAN
60
ORANGE
R-MCODE-0600-ROT
60
RED
PRODUCT DESCRIPTION
In order to be able to distinguish the machines at a coupling station or at a coupling station in the best possible way and to avoid incorrect coupling, there is the option of optical / color coding. A wide variety of colors are incorporated during the production of the hose, which are reflected in the optical coding products at Michel Tube and thus ensure that the material lines are identified.
