Mounting rails
Facts
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Material: Galvanized steel
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
For a medium-duty application
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Single and double version

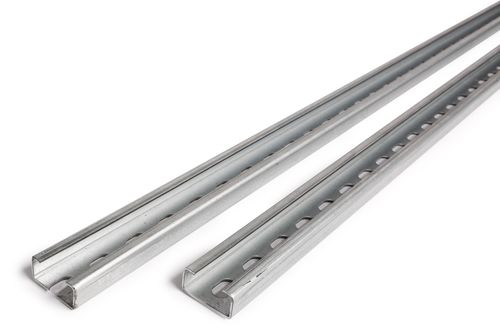

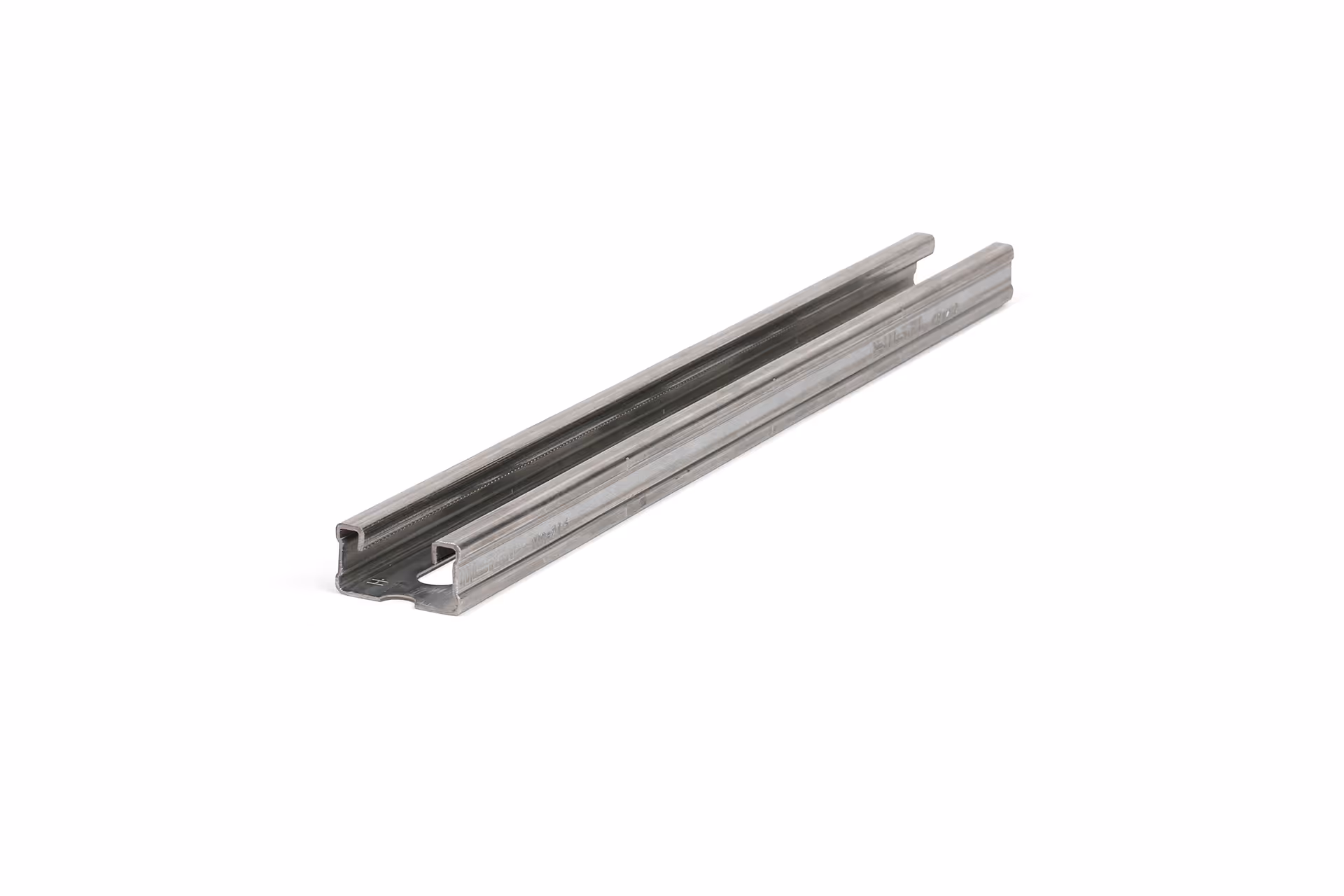

![Mounting rails made of galvanized steel in single and double versions](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/6524690963fc98d2a94e6931_12-02-01.jpg)
Article no.
Execution
Height | mm
L | mm
Thickness | mm
R-M41E-SCHIENE-3000
Single profile rail
41,2
3000
2,0
R-MQ21D-SCHIENE-3000
Double profile rail
41,2
3000
2,0
R-MQ21E-SCHIENE-3000
Single profile rail
20,6
3000
2,0
U-clamps
Facts
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Material: Galvanized steel
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Suitable for mounting rails
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Incl. locking screw

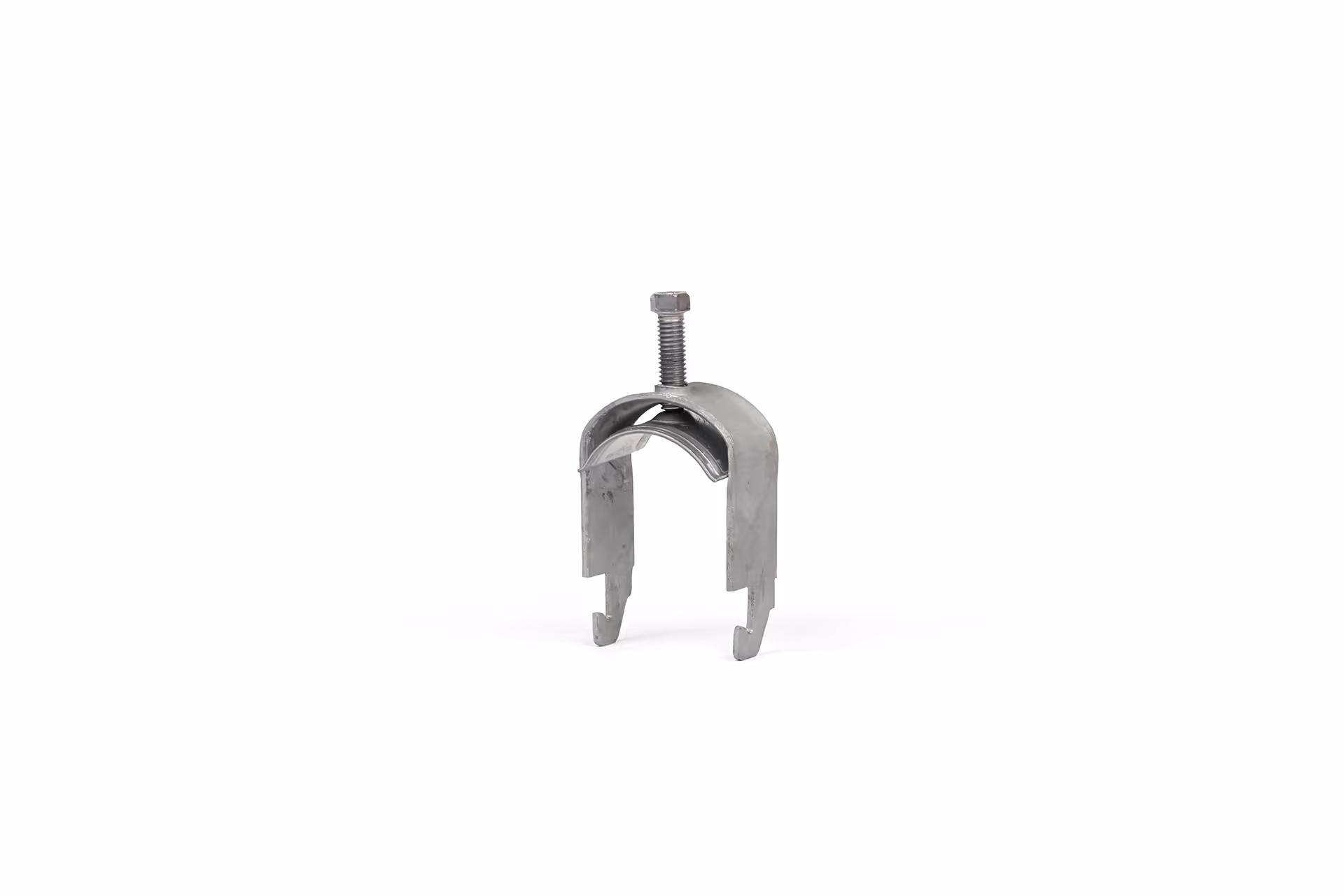

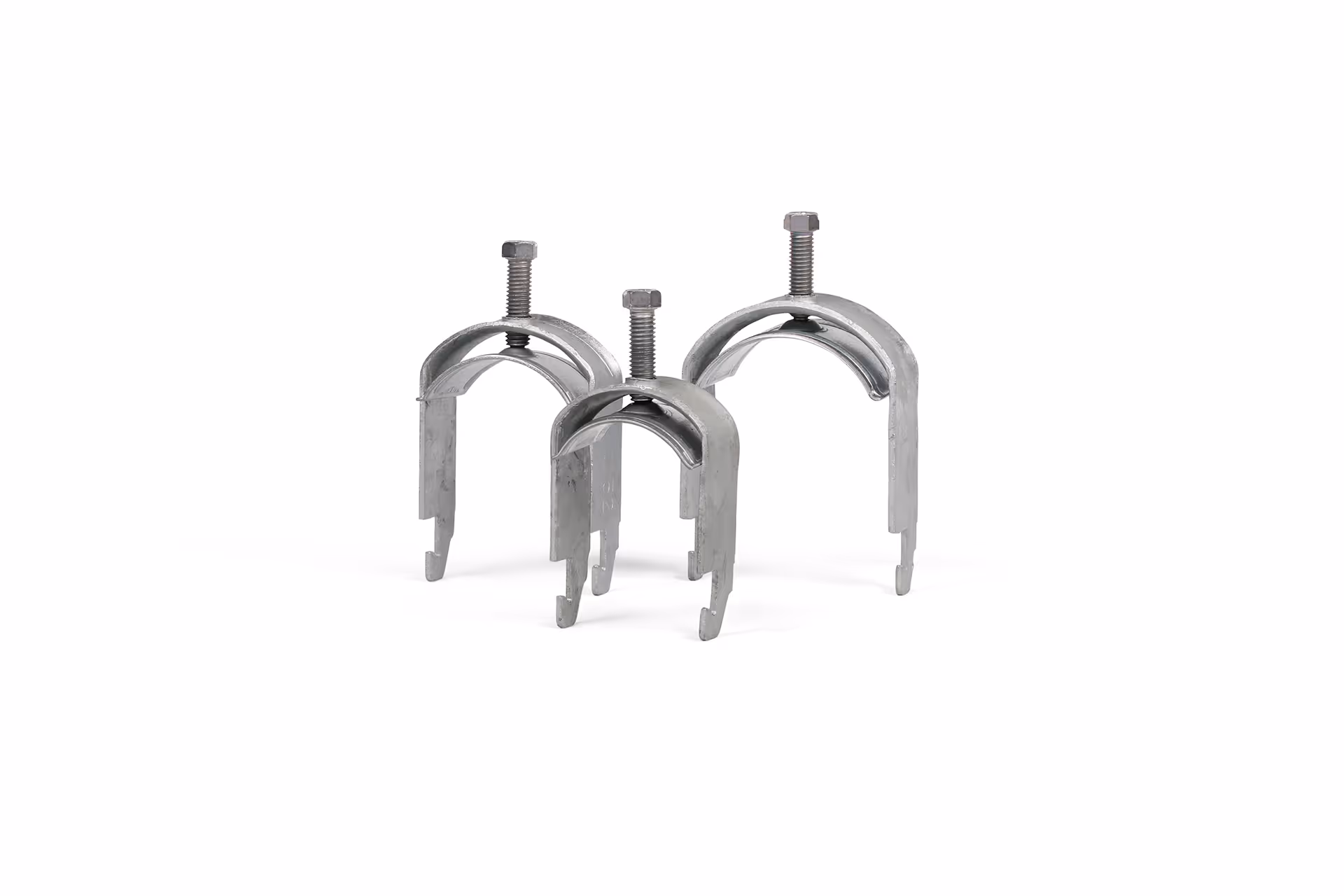

![Galvanized steel clamps with locking screws](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/6524690adc8e7689b48cc4aa_12-02-02.jpg)
Article no.
SB [mm]
for pipe AD
R-BL-SCHELLE-0380-0450
38,0 - 45,0
38,0 / 40,0 / 45,0
R-BL-SCHELLE-0460-0550
46,0 - 55,0
50,0 / 54,0
R-BL-SCHELLE-0560-0640
56,0 - 64,0
60,3
R-BL-SCHELLE-0650-0700
65,0 - 70,0
65,0 / 70,0
R-BL-SCHELLE-0710-0761
71,0 - 76,1
76,1
Pipe clamps
Facts
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Material: Galvanized steel
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Band width: 20mm
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
With elastomer insert
![Two galvanized steel pipe clamps in different sizes with elastomer insert](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/6524690bdb4a641267d487a1_12-02-04.jpg)
Article no.
Ø [mm]
Width | mm
MV-BT-ROHRSCHELLE-0400
40,0
20,0
MV-BT-ROHRSCHELLE-0470
47,0
20,0
MV-BT-ROHRSCHELLE-0500
50,0
20,0
MV-BT-ROHRSCHELLE-0560
56,0
20,0
MV-BT-ROHRSCHELLE-0603
60,3
20,0
MV-BT-ROHRSCHELLE-0660
66,0
20,0
MV-BT-ROHRSCHELLE-0761
76,1
20,0
MV-BT-ROHRSCHELLE-0889
88,9
20,0
U-bracket
Facts
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Material: Galvanized steel
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Incl. 2x threaded nuts
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Stainless steel version on request

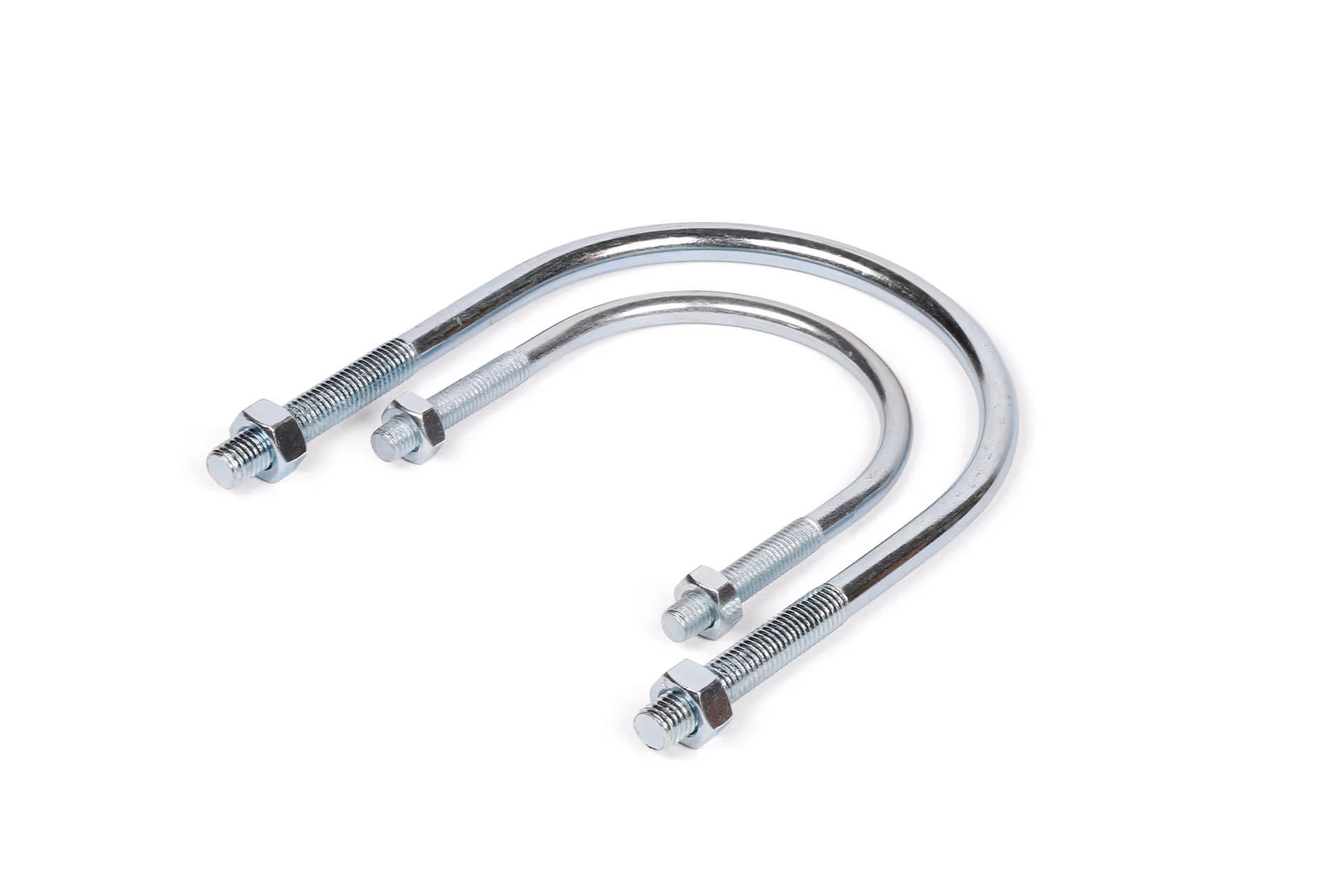

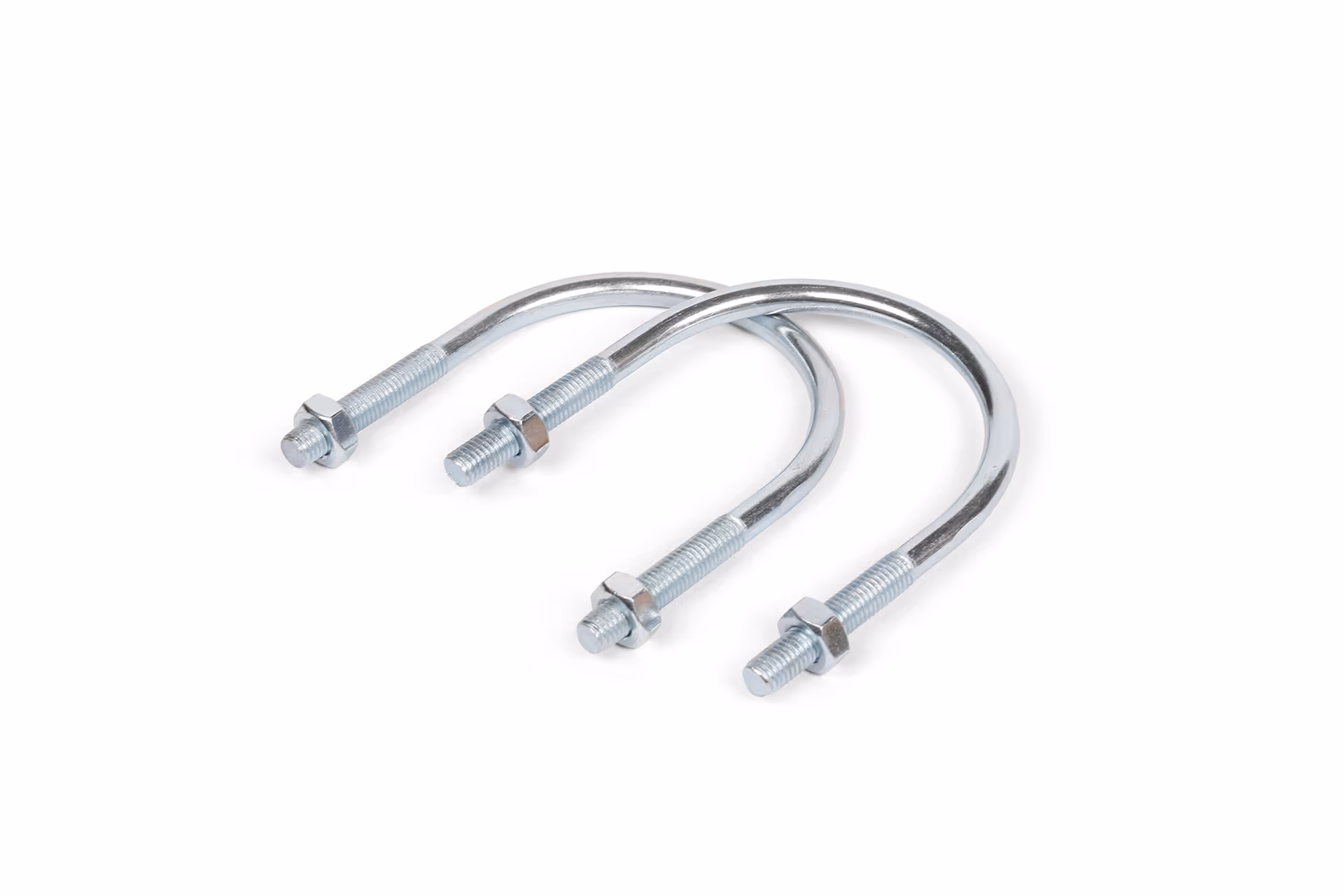

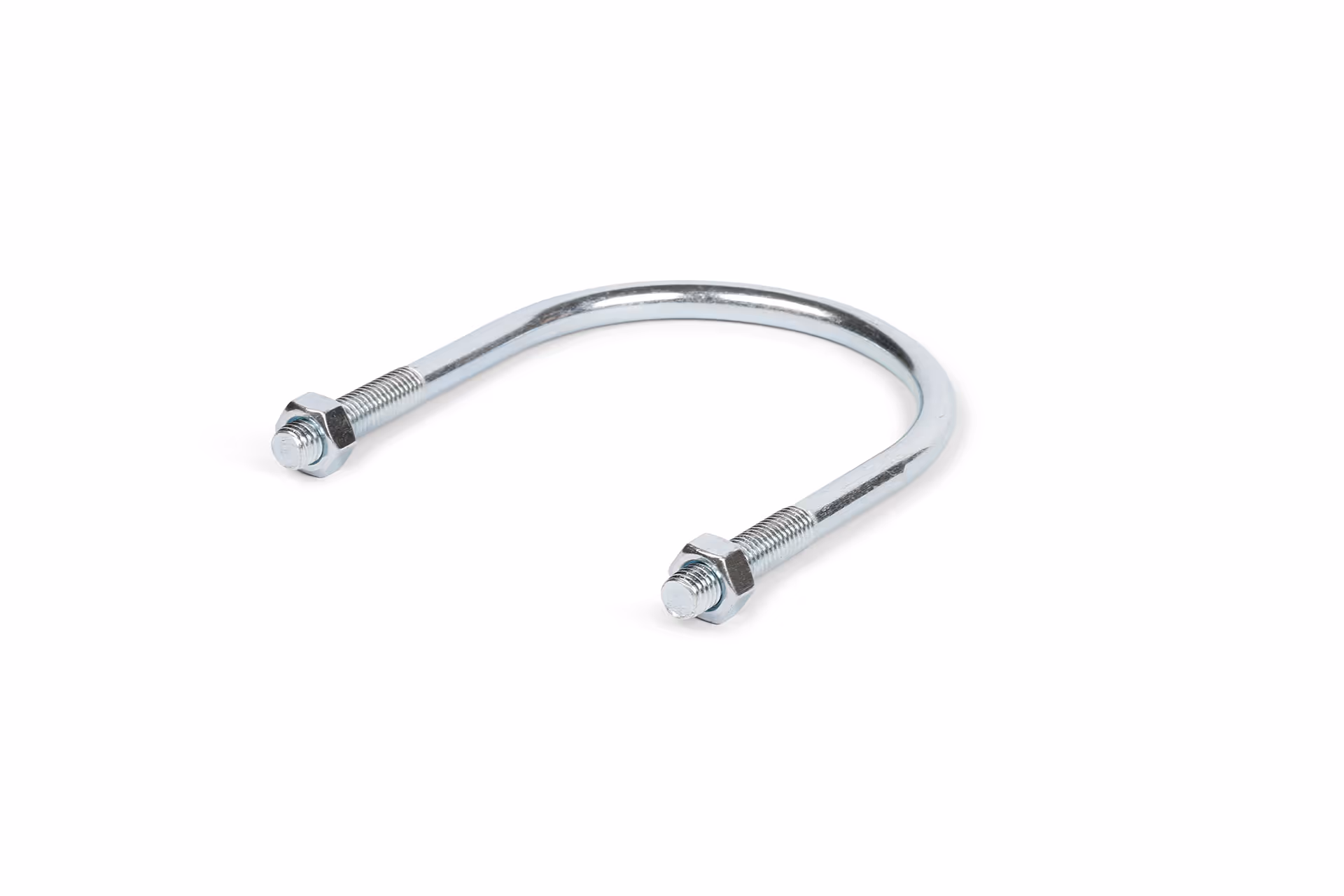

![U-bracket made of galvanized steel with threaded nuts](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/6524690bf7002d45ed347aa8_12-02-05.jpg)
Article no.
for pipe AD
Thread size
R-RSBV-0460-10
38,0 / 40,0
M10
R-RSBV-0520-10
45,0 / 50,0
M10
R-RSBV-0640-12
54,0 / 60,3
M12
R-RSBV-0820-12
65,0 / 70,0 / 76,1
M12
R-RSBV-0940-12
80,0 / 84,0 / 88,9
M12
R-RSBV-1200-16
100,0 / 101,6 / 104,0 / 108,0 / 114,3
M16
R-RSBV-1480-16
128,0 / 129,0 / 133,0 / 139,7
M16
R-RSBV-1760-16
150,0 / 154,0 / 159,0 / 168,3
M16
R-RSBV-2020-16
200,0
M16
PRODUCT DESCRIPTION
Depending on the industry, various pipe clamps, pipe clamps, brackets and cable clamps are used to fasten pipes. Michel Tube's portfolio therefore includes a wide variety of pipe clamps and assembly materials - perfectly matched to the products and outside diameters. The mounting rails and clamps frequently used in the plastics industry are generally available from stock. The clamps are also used in the Vario-Tisch assembly (coupling station) in order to achieve a high number of identical components.
