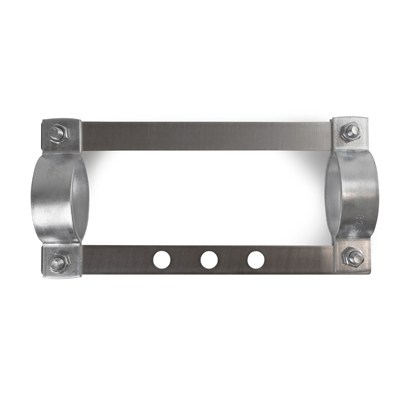

Pure strain relief 350mm
Facts
Material: Galvanized steel / stainless steel 1.4301
For pipe couplings with overall length 150 / 200 mm
Strain relief for axial tensile forces
Can also be retrofitted
Product video
Galvanized steel | 350 mm
Article no.
Ø [mm]
L | mm
RV3S-0650-0650-150-ZL
65,0
350
RV3S-0700-0700-150-ZL
70,0
350
RV3S-0761-0761-150-ZL
76,1
350
RV3S-0800-0800-150-ZL
80,0
350
RV3S-0840-0840-150-ZL
84,0
350
RV3S-0850-0850-150-ZL
85,0
350
RV3S-0889-0889-150-ZL
88,9
350
RV3S-0950-0950-150-ZL
95,0
350
RV3S-1000-1000-150-ZL
100,0
350
RV3S-1016-1016-150-ZL
101,6
350
RV3S-1040-1040-150-ZL
104,0
350
RV3S-1080-1080-150-ZL
108,0
350
RV3S-1100-1100-150-ZL
110,0
350
RV3S-1143-1143-150-ZL
114,3
350
RV3S-1200-1200-150-ZL
120,0
350
RV3S-1250-1250-150-ZL
125,0
350
RV3S-1270-1270-150-ZL
127,0
350
RV3S-1290-1290-150-ZL
129,0
350

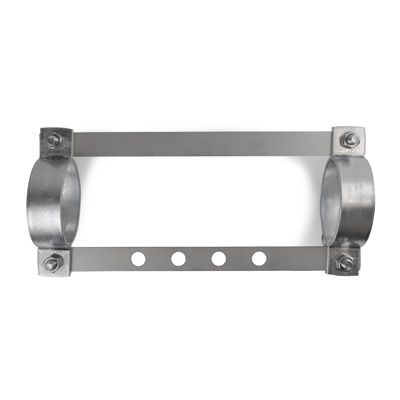

Pure strain relief 400mm
Facts
Material: Galvanized steel / stainless steel 1.4301
For pipe couplings with overall length 150 / 200 mm
Strain relief for axial tensile forces
Can also be retrofitted
Product video
Galvanized steel | 400 mm (up to Ø150.0 mm)
Article no.
Ø [mm]
L | mm
RV3S-0650-0650-200-ZL
65,0
400
RV3S-0700-0700-200-ZL
70,0
400
RV3S-0761-0761-200-ZL
76,1
400
RV3S-0800-0800-200-ZL
80,0
400
RV3S-0840-0840-200-ZL
84,0
400
RV3S-0850-0850-200-ZL
85,0
400
RV3S-0889-0889-200-ZL
88,9
400
RV3S-0950-0950-200-ZL
95,0
400
RV3S-1000-1000-200-ZL
100,0
400
RV3S-1016-1016-200-ZL
101,6
400
RV3S-1040-1040-200-ZL
104,0
400
RV3S-1080-1080-200-ZL
108,0
400
RV3S-1100-1100-200-ZL
110,0
400
RV3S-1143-1143-200-ZL
114,3
400
RV3S-1200-1200-200-ZL
120,0
400
RV3S-1250-1250-200-ZL
125,0
400
RV3S-1270-1270-200-ZL
127,0
400
RV3S-1290-1290-200-ZL
129,0
400
RV3S-1330-1330-200-ZL
133,0
400
RV3S-1350-1350-200-ZL
135,0
400
RV3S-1397-1397-200-ZL
139,7
400
RV3S-1460-1460-200-ZL
146,0
400
RV3S-1500-1500-200-ZL
150,0
400
Galvanized steel | 400 mm (from Ø150.0 mm)
Article no.
Ø [mm]
L | mm
RV3S-1520-1520-200-ZL
152,0
400
RV3S-1550-1550-200-ZL
155,0
400
RV3S-1590-1590-200-ZL
159,0
400
RV3S-1683-1683-200-ZL
168,3
400
RV3S-1740-1740-200-ZL
174,0
400
RV3S-1800-1800-200-ZL
180,0
400
RV3S-1910-1910-200-ZL
191,0
400
RV3S-1930-1930-200-ZL
193,0
400
RV3S-2000-2000-200-ZL
200,0
400
RV3S-2040-2040-200-ZL
204,0
400
RV3S-2100-2100-200-ZL
210,0
400
RV3S-2190-2190-200-ZL
219,0
400
RV3S-2300-2300-200-ZL
230,0
400
RV3S-2500-2500-200-ZL
250,0
400
RV3S-2600-2600-200-ZL
260,0
400
RV3S-2660-2660-200-ZL
266,0
400
RV3S-2730-2730-200-ZL
273,0
400
RV3S-2800-2800-200-ZL
280,0
400
PRODUCT DESCRIPTION
We recommend the use of strain reliefs in the event of pressure surges or for mechanical stabilization and support of the pipes. As pipe couplings only have a sealing function, we generally recommend the use of strain reliefs to additionally secure the pipes. The strain relief consists of special half shells that are connected to each other by a load distribution element.
PICTURE GALLERY
Standard tube connector for glass and stainless steel
For connecting glass and stainless steel tubes
Stainless steel round tube
material: stainless steel 1.4301
Length: 6000mm
Smoothed inside seam
Technical data
Material:
Stainless steel 1.4301
Standard length:
6000mm
Diameter:
38 - 168.3mm
Wall thickness:
1.5mm, 2mm & 3mm
Item numbers
