Facts

Solid, welded stainless steel frame

One frame for all diameters (40.0 / 45.0 / 50.0)

For a space-saving, vertical design

Downloads

Michel Vario-Station (DE)

Michel Vario-Station (EN)

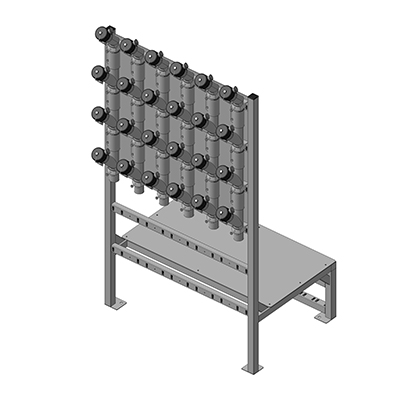

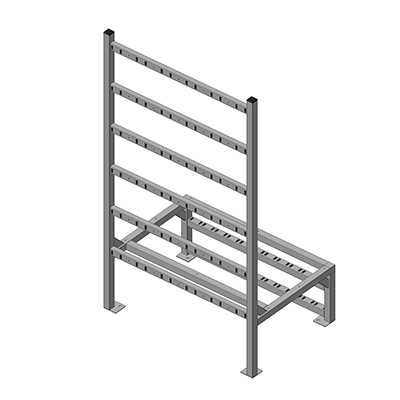

1. SELECT FRAME

Article no.

Ø | mm

Inputs

Outputs

Width

Depth

KSE-4050-04041

40,0 / 45,0 / 50,0

640

500

KSE-4050-06041

40,0 / 45,0 / 50,0

960

500

KSE-4050-08041

40,0 / 45,0 / 50,0

1280

500

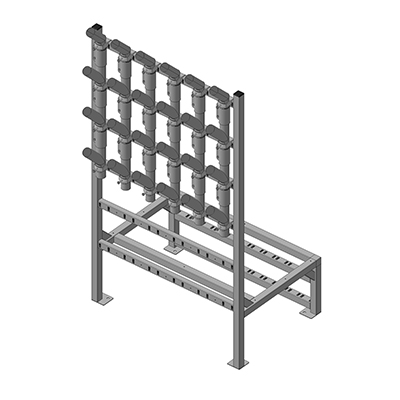

2. pipe manifold Select

Article no.

Material

Outputs

KSE-FL-0XX0E1-01

Stainless steel

KSE-FL-0XX0E1-02

Stainless steel

KSE-FL-0XX0E1-03

Stainless steel

KSE-FL-0XX0E1-04

Stainless steel

3. select hose coupling

Facts

Fully assembled / closed in pairs

Camlock Coupling: Tube adapter (CVRE) + cover flap (CMKA)

Quick couplings: Pipe adapter (SVRE) + cover cap (SMKK)

*For a center-to-center distance of 80mm, we recommend the quick couplings / one-hand couplings

Camlock

Article no.

Type

Diameter

KBE-CVRA-CMKA-0400

Camlock

40,0

KBE-CVRA-CMKA-0450

Camlock

45,0

KBE-CVRA-CMKA-0500

Camlock

50,0

KBE-CVRA-CMKA-0600

Camlock

60,0

Camlock - Hose

Article no.

Type

Diameter

CMSAE-0400

Camlock-Hose

40,0

CMSAE-0450

Camlock-Hose

45,0

CMSAE-0500

Camlock-Hose

50,0

CMSAE-0600

Camlock-Hose

60,0

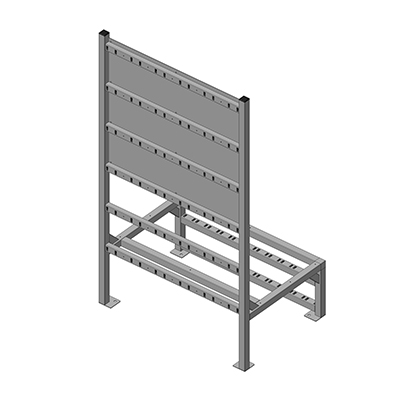

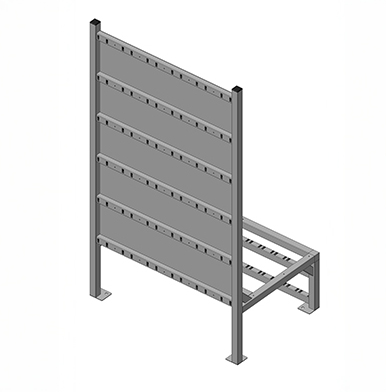

4. select cover plate

Article no.

Material

Inputs

Outputs

Width

KSE-BLA-4060-04041

Aluminum

600

KSE-BLA-4060-06041

Aluminum

750

KSE-BLA-4060-08041

Aluminum

900

Standard tube connector for glass and stainless steel

For connecting glass and stainless steel tubes

Stainless steel round tube

material: stainless steel 1.4301
Length: 6000mm
Smoothed inside seam

Technical data

Material:

Stainless steel 1.4301

Standard length:

6000mm

Diameter:

38 - 168.3mm

Wall thickness:

1.5mm, 2mm & 3mm

Item numbers

Outside Ø

Radius 100 / 120 / 150 mm

Radius 250 mm

Radius 500 mm

Radius 800 mm

38.0 x 1.5

RBE-038015-90100-1010

RBE-038015-90100-1234

40.0 x 1.5

RBE-038015-90100-1010

45.0 x 1.5

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

50.0 x 2.0

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010
