Standard pipe coupling (heavy-duty version)
Facts
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Material: Stainless steel 1.4301 / aluminum
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Heavy-duty version for pressure conveying
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
With double inner sheath and earthing strap

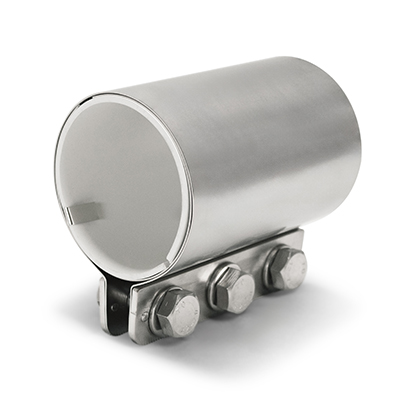

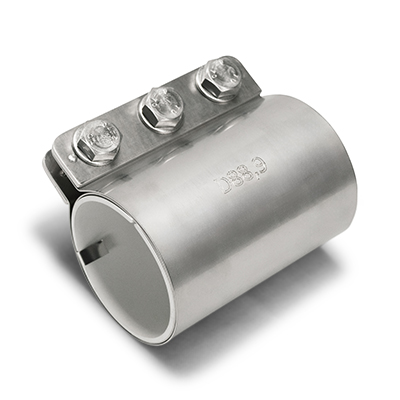

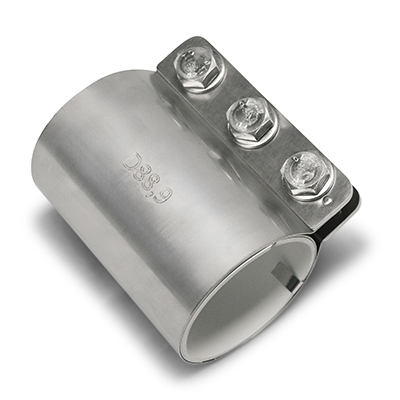

![Stainless steel / aluminum pipe coupling with white seal](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/65205801cf5533331b60782e_karussell_5.jpg)
Stainless steel | 150 mm - 3 screws
Article no.
Ø [mm]
Gasket
max. temp.
RV7S-0650-0650-150-WE
65,0
NR/SBR light
80 °C
RV7S-0700-0700-150-WE
70,0
NR/SBR light
80 °C
RV7S-0761-0761-150-WE
76,1
NR/SBR light
80 °C
RV7S-0800-0800-150-WE
80,0
NR/SBR light
80 °C
RV7S-0840-0840-150-WE
84,0
NR/SBR light
80 °C
RV7S-0850-0850-150-WE
85,0
NR/SBR light
80 °C
RV7S-0889-0889-150-WE
88,9
NR/SBR light
80 °C
RV7S-0950-0950-150-WE
95,0
NR/SBR light
80 °C
RV7S-1000-1000-150-WE
100,0
NR/SBR light
80 °C
RV7S-1016-1016-150-WE
101,6
NR/SBR light
80 °C
RV7S-1040-1040-150-WE
104,0
NR/SBR light
80 °C
RV7S-1080-1080-150-WE
108,0
NR/SBR light
80 °C
RV7S-1100-1100-150-WE
110,0
NR/SBR light
80 °C
RV7S-1143-1143-150-WE
114,3
NR/SBR light
80 °C
RV7S-1200-1200-150-WE
120,0
NR/SBR light
80 °C
RV7S-1250-1250-150-WE
125,0
NR/SBR light
80 °C
RV7S-1270-1270-150-WE
127,0
NR/SBR light
80 °C
RV7S-1290-1290-150-WE
129,0
NR/SBR light
80 °C
Standard pipe coupling (heavy-duty version)
Facts
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Material: Stainless steel 1.4301 / aluminum
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
Heavy-duty version for pressure conveying
![](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/64934d541fd24b2bde4bd555_plus.png)
With double inner sheath and earthing strap

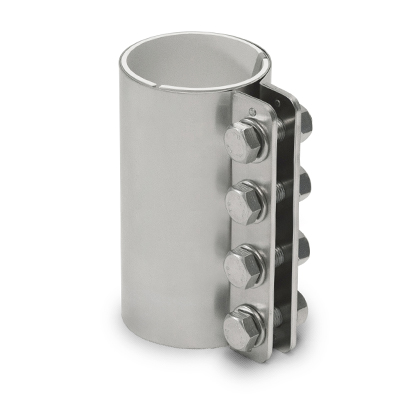

![Pipe coupling made of stainless steel / aluminum for pressure conveying with double inner casing and earthing strap](https://cdn.prod.website-files.com/641cbc0b022d9363f14697a1/652400bed03ac60ae71649b2_05-02-02.jpg)
Stainless steel | 200 mm - 4 screws (up to Ø150.0 mm)
Article no.
Ø [mm]
Gasket
max. temp.
RV7S-0650-0650-200-WE
65,0
NR/SBR light
80 °C
RV7S-0700-0700-200-WE
70,0
NR/SBR light
80 °C
RV7S-0761-0761-200-WE
76,1
NR/SBR light
80 °C
RV7S-0800-0800-200-WE
80,0
NR/SBR light
80 °C
RV7S-0840-0840-200-WE
84,0
NR/SBR light
80 °C
RV7S-0850-0850-200-WE
85,0
NR/SBR light
80 °C
RV7S-0889-0889-200-WE
88,9
NR/SBR light
80 °C
RV7S-0950-0950-200-WE
95,0
NR/SBR light
80 °C
RV7S-1000-1000-200-WE
100,0
NR/SBR light
80 °C
RV7S-1016-1016-200-WE
101,6
NR/SBR light
80 °C
RV7S-1040-1040-200-WE
104,0
NR/SBR light
80 °C
RV7S-1080-1080-200-WE
108,0
NR/SBR light
80 °C
RV7S-1100-1100-200-WE
110,0
NR/SBR light
80 °C
RV7S-1143-1143-200-WE
114,3
NR/SBR light
80 °C
RV7S-1200-1200-200-WE
120,0
NR/SBR light
80 °C
RV7S-1250-1250-200-WE
125,0
NR/SBR light
80 °C
RV7S-1270-1270-200-WE
127,0
NR/SBR light
80 °C
RV7S-1290-1290-200-WE
129,0
NR/SBR light
80 °C
RV7S-1330-1330-200-WE
133,0
NR/SBR light
80 °C
RV7S-1350-1350-200-WE
135,0
NR/SBR light
80 °C
RV7S-1397-1397-200-WE
139,7
NR/SBR light
80 °C
RV7S-1460-1460-200-WE
146,0
NR/SBR light
80 °C
RV7S-1500-1500-200-WE
150,0
NR/SBR light
80°C
Stainless steel | 200 mm - 4 screws (from Ø150.0 mm)
Article no.
Ø [mm]
Gasket
max. temp.
RV7S-1520-1520-200-WE
152,0
NR/SBR light
80 °C
RV7S-1550-1550-200-WE
155,0
NR/SBR light
80 °C
RV7S-1590-1590-200-WE
159,0
NR/SBR light
80 °C
RV7S-1683-1683-200-WE
168,3
NR/SBR light
80 °C
RV7S-1740-1740-200-WE
174,0
NR/SBR light
80 °C
RV7S-1800-1800-200-WE
180,0
NR/SBR light
80 °C
RV7S-1910-1910-200-WE
191,0
NR/SBR light
80 °C
RV7S-1930-1930-200-WE
193,0
NR/SBR light
80 °C
RV7S-2000-2000-200-WE
200,0
NR/SBR light
80 °C
RV7S-2040-2040-200-WE
204,0
NR/SBR light
80 °C
RV7S-2100-2100-200-WE
210,0
NR/SBR light
80 °C
RV7S-2190-2190-200-WE
219,0
NR/SBR light
80 °C
RV7S-2300-2300-200-WE
230,0
NR/SBR light
80 °C
RV7S-2500-2500-200-WE
250,0
NR/SBR light
80 °C
RV7S-2600-2600-200-WE
260,0
NR/SBR light
80 °C
RV7S-2660-2660-200-WE
266,0
NR/SBR light
80 °C
RV7S-2730-2730-200-WE
273,0
NR/SBR light
80 °C
RV7S-2800-2800-200-WE
280,0
NR/SBR light
80 °C
PRODUCT DESCRIPTION
Stainless steel pipe couplings from Michel Tube are very often used for external weather conditions or in the food sector. The stainless steel couplings are fitted with a white, food-safe seal as standard, and the outer and inner casing as well as the screws are made of stainless steel. Special requirements and special materials can be taken into account at the customer's request.
