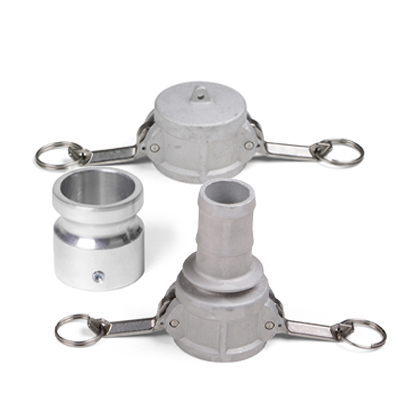

Lever arm clutch | Camlock
Facts
Material: Aluminum
Including seal and fastening material
For vacuum conveying
FEMALE PART PROTECTIVE CAP
Article No.
Ø | mm
Material
Type
CMKA-0400
40,0
Aluminum
Female Part Protective Cap
CMKA-0450
45,0
Aluminum
Female Part Protective Cap
CMKA-0500
50,0
Aluminum
Female Part Protective Cap
CMKA-0600
60,0
Aluminum
Female Part Protective Cap
CMKA-0761
76,1
Aluminum
Female Part Protective Cap
FEMALE PART HOSE CONNECTION
Article No.
Ø | mm
Material
Type
CMSA-0400
40,0
Aluminum
Female Part Hose Connection
CMSA-0500
50,0
Aluminum
Female Part Hose Connection
CMSA-0600
60,0
Aluminum
Female Part Hose Connection
CMSA-0761
76,1
Aluminum
Female Part Hose Connection
Article No.
Ø | mm
Material
Type
CMSAE-0400
40,0
Aluminum / stainless steel
Female Part Hose Connection
CMSAE-0450
45,0
Aluminum / stainless steel
Female Part Hose Connection
CMSAE-0500
50,0
Aluminum / stainless steel
Female Part Hose Connection
CMSAE-0600
60,0
Aluminum / stainless steel
Female Part Hose Connection
CMSAE-0761
76,1
Aluminum / stainless steel
Female Part Hose Connection
NUT PART PIPE CONNECTION
Article No.
Ø | mm
Material
Type
CMRA-0400
40,0
Aluminum
Female part Pipe connection
CMRA-0500
50,0
Aluminum
Female part Pipe connection
CMRA-0600
60,0
Aluminum
Female part Pipe connection
CMRA-0761
76,1
Aluminum
Female part Pipe connection
FATHER PART HOSE CONNECTION
Article No.
Ø | mm
Material
Type
CVSA-0400
40,0
Aluminum
Sire part Show connection
CVSA-0500
50,0
Aluminum
Sire part Show connection
CVSA-0600
60,0
Aluminum
Sire part Show connection
CVSA-0761
76,1
Aluminum
Sire part Show connection
MALE PART PIPE CONNECTION
Article No.
Ø | mm
Material
Type
CVRA-0400
40,0
Aluminum
Male part pipe connection
CVRA-0450
45,0
Aluminum
Male part pipe connection
CVRA-0500
50,0
Aluminum
Male part pipe connection
CVRA-0600
60,0
Aluminum
Male part pipe connection
CVRA-0761
76,1
Aluminum
Male part pipe connection
FATHER PART HOSE CONNECTION
Article No.
Ø | mm
Material
Type
CVSAE-0400
40,0
Aluminum / stainless steel
Sire part Show connection
CVSAE-0450
45,0
Aluminum / stainless steel
Sire part Show connection
CVSAE-0500
50,0
Aluminum / stainless steel
Sire part Show connection
CVSAE-0600
60,0
Aluminum / stainless steel
Sire part Show connection
CVSAE-0761
76,1
Aluminum / stainless steel
Sire part Show connection
STUFF FATHER PART
Article No.
Ø | mm
Material
Type
CVKA-0400
40,0
Aluminum
Father part stopper
CVKA-0500
50,0
Aluminum
Father part stopper
CVKA-0600
60,0
Aluminum
Father part stopper
CVKA-0761
76,1
Aluminum
Father part stopper
PRODUCT DESCRIPTION
Camlock couplings are among the most widely used forms of connecting pipes and hoses. With this coupling, a lever applies axial pressure to a seal between the hose coupling and pipe socket, sealing the system.
The Camlock couplings from Michel Tube are specially tailored to the plastics processing industry. All product-contacting parts are made of stainless steel. A combination of aluminum housing and stainless steel delivery pipe saves weight and costs.
PICTURE GALLERY
Standard pipe connector for glass and stainless steel
For connecting glass and stainless steel pipes
Stainless steel round tube
material: Stainless steel 1.4301
Length: 6000mm
Inner seam smoothed
Technical data
Material:
Stainless steel 1.4301
Standard length:
6000mm
Diameter:
38 - 168.3mm
Wall thickness:
1.5mm, 2mm & 3mm
