Suction lances aluminum | With bracket
Facts
Uniform outer diameter for a precise insertion into openings
The internal bracket prevents the film from tearing
Custom lengths and stainless steel inner tubes can be implemented
Ø30.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLA-030015-0600-0600-BL
30,0
1,5
60,0
600
SLA-030015-0600-1200-BL
30,0
1,5
60,0
1200
SLA-030015-0600-1500-BL
30,0
1,5
60,0
1500
SLA-030015-0600-2000-BL
30,0
1,5
60,0
2000
Ø38.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLA-038015-0700-0600-BL
38,0
1,5
70,0
600
SLA-038015-0700-1200-BL
38,0
1,5
70,0
1200
SLA-038015-0700-1500-BL
38,0
1,5
70,0
1500
SLA-038015-0700-2000-BL
38,0
1,5
70,0
2000
Ø40.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLA-040015-0700-0600-BL
40,0
1,5
70,0
600
SLA-040015-0700-1200-BL
40,0
1,5
70,0
1200
SLA-040015-0700-1500-BL
40,0
1,5
70,0
1500
SLA-040015-0700-2000-BL
40,0
1,5
70,0
2000
Ø45.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLA-045015-0800-0600-BL
45,0
1,5
80,0
600
SLA-045015-0800-1200-BL
45,0
1,5
80,0
1200
SLA-045015-0800-1500-BL
45,0
1,5
80,0
1500
SLA-045015-0800-2000-BL
45,0
1,5
80,0
2000
Ø50.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLA-050015-0800-0600-BL
50,0
1,5
80,0
600
SLA-050015-0800-1200-BL
50,0
1,5
80,0
1200
SLA-050015-0800-1500-BL
50,0
1,5
80,0
1500
SLA-050015-0800-2000-BL
50,0
1,5
80,0
2000
Ø60.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLA-060015-0900-0600-BL
60,0
1,5
90,0
600
SLA-060015-0900-1200-BL
60,0
1,5
90,0
1200
SLA-060015-0900-1500-BL
60,0
1,5
90,0
1500
SLA-060015-0900-2000-BL
60,0
1,5
90,0
2000
Suction lances aluminum / stainless steel | With bracket
Facts
Uniform outer diameter for a precise insertion into openings
The internal bracket prevents the film from tearing
Custom lengths and stainless steel inner tubes can be implemented
Ø40.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLAE-040015-0700-0600-BL
40,0
1,5
70,0
600
SLAE-040015-0700-1200-BL
40,0
1,5
70,0
1200
SLAE-040015-0700-2000-BL
40,0
1,5
70,0
2000
Ø50.0 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLAE-050015-0800-0600-BL
50,0
1,5
80,0
600
SLAE-050015-0800-1200-BL
50,0
1,5
80,0
1200
SLAE-050015-0800-2000-BL
50,0
1,5
80,0
2000
Ø60.3 X 1.5 mm
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLAE-060315-0900-0600-BL
60,3
1,5
90,0
600
SLAE-060315-0900-1200-BL
60,3
1,5
90,0
1200
SLAE-060315-0900-2000-BL
60,3
1,5
90,0
2000
Suction lances stainless steel | With bracket
Facts
Material 1.4301
Inner tube with 45° miter cut
Approx. 1000mm total length / special lengths on request
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLE-030015-050315-1000-LA
30,0
1,5
60,3
1000
SLE-038015-060315-1000-LA
38,0
1,5
60,3
1000
SLE-040015-060315-1000-LA
40,0
1,5
60,3
1000
SLE-045015-070020-1000-LA
45,0
1,5
70,0
1000
SLE-050015-070020-1000-LA
50,0
1,5
70,0
1000
SLE-054020-080020-1000-LA
54,0
2,0
80,0
1000
SLE-060315-080020-1000-LA
60,3
1,5
80,0
1000
SLE-065020-088920-1000-LA
65,0
2,0
88,9
1000
SLE-070020-101620-1000-LA
70,0
2,0
101,6
1000
SLE-076120-101620-1000-LA
76,1
2,0
101,6
1000
SLE-084020-108020-1000-LA
84,0
2,0
108,0
1000
SLE-088920-114320-1000-LA
88,9
2,0
114,3
1000

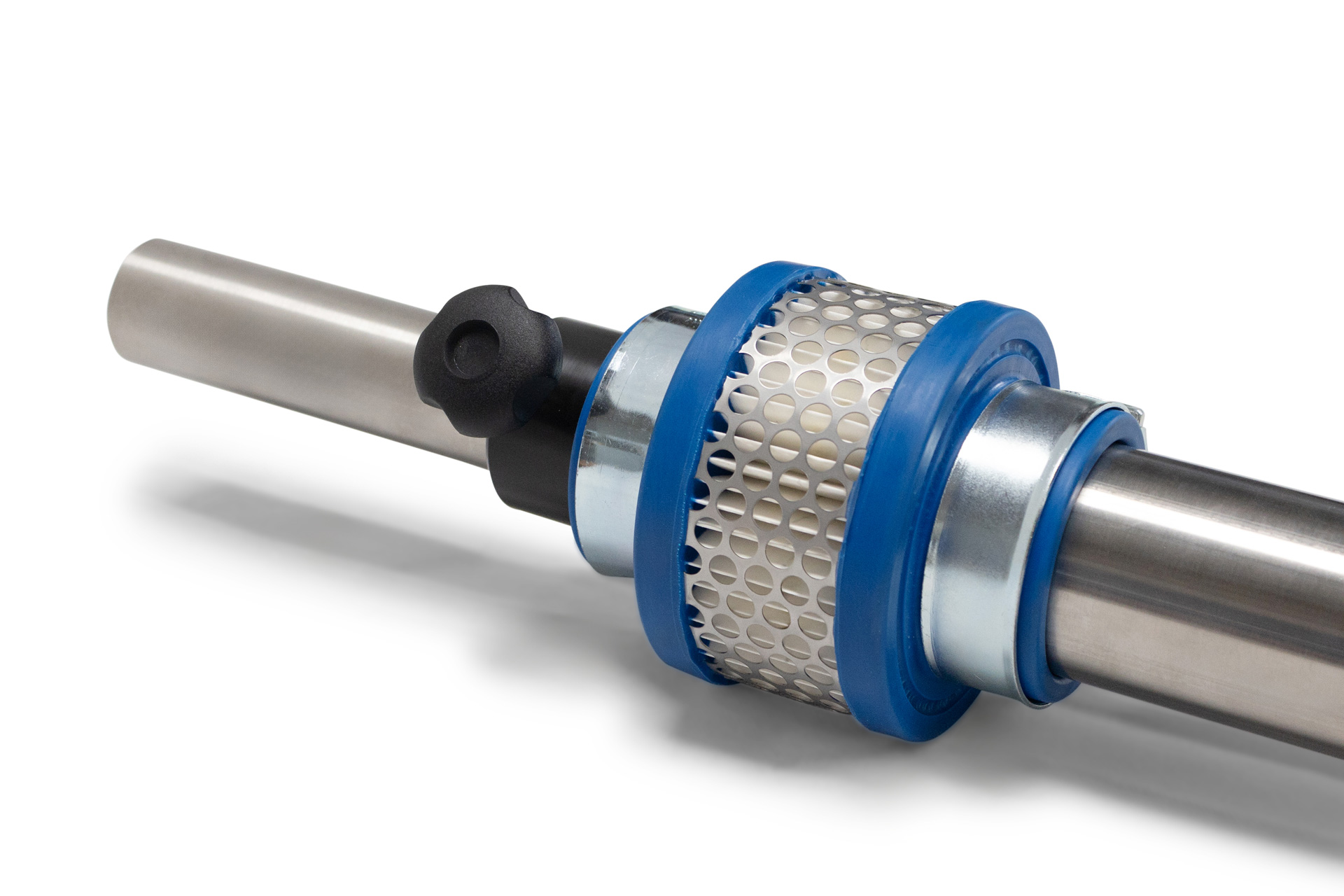

Suction lance with filter
Facts
Material 1.4301 / POM
Inner tube with 45° miter cut
Approx. 1000 mm total length including air filter / special lengths on request
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLE-040015-060315-1000-LF
40,0
1,5
60,3
1000
SLE-045015-060315-1000-LF
45,0
1,5
60,3
1000
SLE-050015-060315-1000-LF
50,0
1,5
60,3
1000
Suction lances stainless steel | Single-pipe system
Facts
Material 1.4301
Including laser cutouts for false air adjustments
Approx. 1000mm total length / special lengths on request
Article No.
Ø [mm]
WS [mm]
OD [mm]
L [mm]
SLE-038015-038015-975
38,0
1,5
38,0
975
SLE-040015-040015-975
40,0
1,5
40,0
975
SLE-045015-045015-975
45,0
1,5
45,0
975
SLE-050015-050015-975
50,0
1,5
50,0
975
SLE-054020-054020-975
54,0
2,0
54,0
975
SLE-060315-060315-975
60,3
1,5
60,3
975
PRODUCT DESCRIPTION
Suction lances are used in the plastics industry at the suction point. For this purpose, the suction lance is inserted with a hose into the container (material container, octabin). By regulating with false air that is added, the system sucks granulate from the container. Suction lances are available from Michel Tube in various lengths and diameters. An internal bracket has proven to be particularly advantageous because it prevents disruptive edges. The suction lances are available from Michel Tube in aluminum, stainless steel, and as a hybrid aluminum stainless steel version.
For particularly high-quality requirements, Michel Tube also offers stainless steel suction lances with air filters. This ensures that no particles are sucked into the air circuit. The result is high-quality plastic end products. The prerequisite for this is that this type of air filtration is consistently implemented in the operation and that there are no “weak points” with regard to air purity in the suction process.
