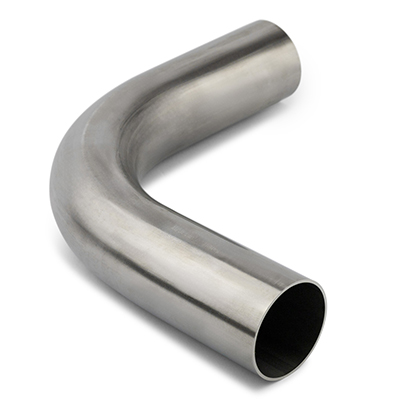

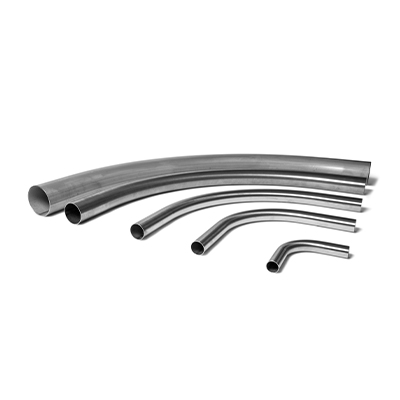

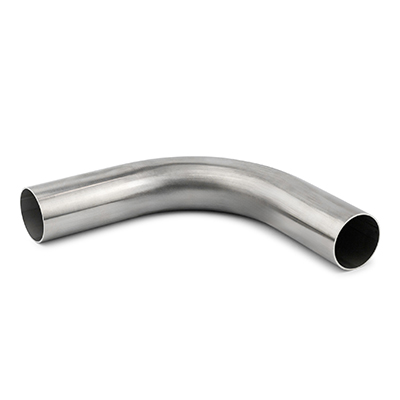

Silo pipe elbow
Facts
Material: Stainless steel 1.4301 / wear-resistant version
Diameter: 104 x 2 mm / 108 x 2 mm
Radius: R 800 mm
Degree number: 90° /180°
Connection: Loose flange / fixed flange or straight pipe end
According to customer specifications (measurements) or drawings
Manufactured in sections or as a single piece
Article No.
Volume [L]
B [mm]
H [mm]
H1 [mm]
alpha [°]
CEA-RS-0100-H200
100
600
750
200
90
CEA-RS-0150-H200
150
600
890
200
90
CEA-RS-0200-H200
200
600
1040
200
90
CEA-RS-0300-H200
300
800
1010
200
90
CEA-RS-0400-H200
400
1000
1010
200
90
Article No.
Volume [L]
B [mm]
H [mm]
H1 [mm]
alpha [°]
available
CEA-RS-0100-H200
100
600
750
200
90
CEA-RS-0150-H200
150
600
890
200
90
CEA-RS-0200-H200
200
600
1040
200
90
CEA-RS-0300-H200
300
800
1010
200
90
CEA-RS-0400-H200
400
1000
1010
200
90
PRODUCT DESCRIPTION

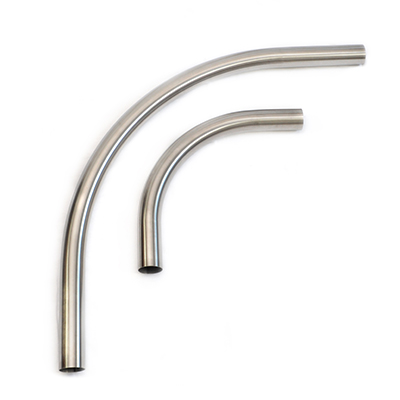

Our pipe bends are the ideal solution for silos from all common manufacturers and impress with their precise manufacturing, high-quality materials, and versatile design options. They are manufactured according to customer specifications, measurements, or drawings and can be delivered in sections or as a single piece, depending on the installation situation. Made of 1.4301 stainless steel or optionally in a wear-resistant version, they are also suitable for particularly demanding applications. Available in diameters of 104 x 2 mm and 108 x 2 mm with a radius of R 800 mm and a degree angle of 90° or 180°. Loose flanges, fixed flanges, or straight pipe ends are available as connections. A matching riser pipe and the corresponding fastening materials are also available. This provides you with a durable and precisely fitting solution for your silo system.
