Standard pipe connector

Michel Vario-Wand

Facts

Solid stainless steel sheet for diameters 40.0 - 60.3 mm

Incl. holes for attaching signs

For space-saving, flexible installation and quick assembly

Product video

4 outputs

Article no.

Ø | mm

Inputs

Outputs

Width

Depth

KWE-4050-04031

40,0 / 45,0 / 50,0

4

3

600

750

KWE-4050-05041

40,0 / 45,0 / 50,0

5

4

750

1000

KWE-4050-06041

40,0 / 45,0 / 50,0

6

4

900

1000

KWE-6076-05041

60,3

5

4

800

1120

1st plate Select

Facts

Solid stainless steel sheet for diameters 40.0 - 60.3 mm

Incl. holes for attaching signs

For space-saving, flexible installation and quick assembly

Product video

4 outputs

Article no.

Ø | mm

Inputs

Outputs

Width

Depth

KWE-4050-04031

40,0 / 45,0 / 50,0

4

3

600

750

KWE-4050-05041

40,0 / 45,0 / 50,0

5

4

750

1000

KWE-4050-06041

40,0 / 45,0 / 50,0

6

4

900

1000

KWE-6076-05041

60,3

5

4

800

1120

2. pipe manifold Select

Facts

Modular, self-explanatory kit

Incl. pipe clamps and pipe connectors

Space-saving, loose shipping

Downloads

Product specifications

CAD data

Product video

6 Table

Article no.

Material

Outputs

KWE-FL-0XX0E1-01

Stainless steel

1

KWE-FL-0XX0E1-02

Stainless steel

2

KWE-FL-0XX0E1-03

Stainless steel

3

KWE-FL-0XX0E1-04

Stainless steel

4

KWE-FL-0XX0E1-05

Stainless steel

5

KWE-FL-0XX0E1-06

Stainless steel

6

3. select hose coupling

Item number
KBE-CVRA-CMKA-0XX0

Item number
KBE-SVRE-SMKK-0XX0

Item number
CMSAE-0XX0

Item number
SMSE-0XX0

Facts

Fully assembled / closed in pairs

Camlock Coupling: Tube adapter (CVRE) + cover flap (CMKA)

Quick couplings: Pipe adapter (SVRE) + cover cap (SMKK)

*For a center-to-center distance of 80mm, we recommend the quick couplings / one-hand couplings

CVRA + CMKA

Downloads

Product specifications

CAD data

Product video

Camlock

Article no.

Type

Diameter

KBE-CVRA-CMKA-0400

Camlock

40,0

KBE-CVRA-CMKA-0450

Camlock

45,0

KBE-CVRA-CMKA-0500

Camlock

50,0

KBE-CVRA-CMKA-0600

Camlock

60,0

Camlock - Hose

Article no.

Type

Diameter

CMSAE-0400

Camlock-Hose

40,0

CMSAE-0450

Camlock-Hose

45,0

CMSAE-0500

Camlock-Hose

50,0

CMSAE-0600

Camlock-Hose

60,0

PRODUCT DESCRIPTION

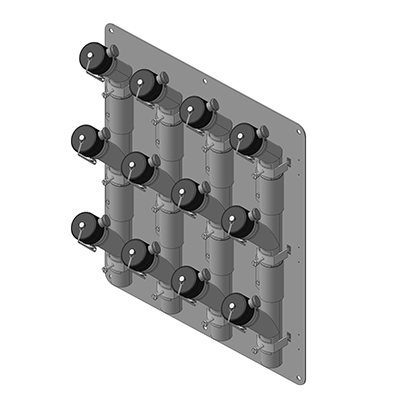

The Michel Vario-Wand was derived from the Michel Vario-Tisch .

The Michel Vario-Wand combines the advantages of the Michel Vario-Tisch with even greater assembly flexibility on site. The components are delivered individually as an assembly group. The panel is hung/mounted like a picture and also serves as a cover plate. Attachments such as a drip tray for granulate or coding can also be retrofitted.

The Michel Vario-Wand can be mounted horizontally, vertically and at an angle. Cuts can be made on site. This enables the fitter to set up a coupling point on site in the simplest possible way.

PICTURE GALLERY

Material distributor Vario-Wand.Material distributor Vario-Wand.Material distributor Vario-Wand.

Standard tube connector for glass and stainless steel

For connecting glass and stainless steel tubes

Stainless steel round tube

material: stainless steel 1.4301

Length: 6000mm

Smoothed inside seam

Technical data

Material:

Stainless steel 1.4301

Standard length:

6000mm

Diameter:

38 - 168.3mm

Wall thickness:

1.5mm, 2mm & 3mm

Information on

Product specifications:

CAD data:

Product video:

Item numbers

Outside Ø

Radius 100 / 120 / 150 mm

Radius 250 mm

Radius 500 mm

Radius 800 mm

38.0 x 1.5

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1234

40.0 x 1.5

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

45.0 x 1.5

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

50.0 x 2.0

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010

50.0 x 1.5

RBE-038015-90100-1010
